- Axial force balance
- Maximum flow is 350 m3/h, with built-in speed reducer
- Maximum pressure is 80 bar with balanced radial force design
- Light weight and small floor space
General Purpose Pump
Pumps in cast iron, for clean oil, nonabrasive liquids. The simple and compact construction makes it low-cost, frequently used in modified versions by OEM customers. NM pumps are designed for use with IEC or NEMA flange motors.
Capacity: up to 50 m3/h
Pressure: up to 18 bar

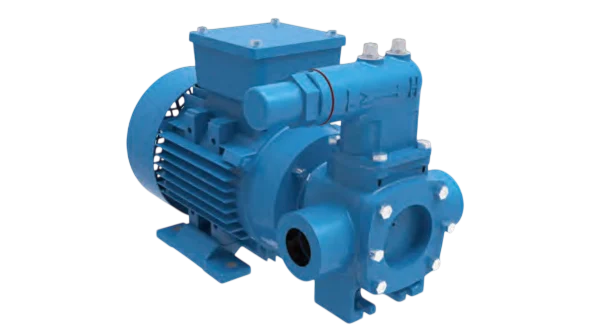

General Purpose Close-coupled Pump
Pumps in cast iron, for clean oil, non-abrasive liquids. The simpler and more compact construction makes it an ultra low-cost pump, frequently used in modified versions by OEM customers. NC pumps are designed for use with IEC or NEMA flange motors.
Capacity: up to 45 m3/h
Pressure: up to 16 bar
Heavy Duty Multi-function Pump
NL pumps are specially designed for tough applications including highly viscous liquid. Higher speed operation is allowed. Direct drive eliminates the use of speed reducer, and makes higher pressure possible. Pumps in cast iron, are designed for a wide range of viscous, non-corrosive liquids. Pumps in carbon steel, are designed for refinery and petrochemical applications which meet API 676 standard. Pumps in stainless steel, are designed for handling corrosive liquids, primarily used in chemical, food and pharmaceutical industries.
Capacity: up to 250 m3/h
Pressure: up to 20 bar
Leak-free Magnetic Pump
NE environmental protection magnetic pump is designed to meet the stringent requirements of non-leakage applications, completely solve the problem of liquid or gas leakage. Usually, most customers use double sealing and auxiliary flushing system to solve leakage, but this solution requires frequent maintenance and frequent replacement of parts, so maintenance costs are high. The total life cycle cost of NE environmental protection magnetic pump is much lower than that of
traditional double mechanical seal scheme.
Capacity: up to 90 m3/h
Pressure: up to 20 bar
Large Flow Double Suction gear Pump
ND double suction internal gear pump is a new and unique patented product developed for large flow, high pressure and low weight requirements of petrochemical industry.
